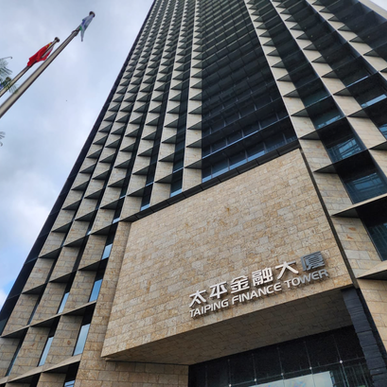

Taiping Tower Stone PVDF Coating

STONIUM PVDF COATINGS

Natural Pattern PVDF Coating System

Stonium PVDF coating is a high end aluminium coating system that can replicate natural stones 90% in likeness. Stonium panels are often used along side natural stone panels, typically using natural stones on lower levels and Stonium panels on higher levels. Using Stonium PVDF panels can help to reduce the entire weight of the building and save a lot of cost on materials and hanging systems. Our coating system can replicate marble, terrazzo, granite and many other types of stones. This coating system carries a 20 year warranty and complies with AAMA 2605 standards.

Stonium PVDF Coating System is a multi-layered coating. This coating uses a Duranar XL 3 Coat System; comprising of a primer coat, topcoat and clear coat, as it's core system. Pattern Coating layers are applied one by one in a specific colour order to achieve a desired aesthetic result, replicating a targeted stone finish.

The Pattern Layers can range from 1-10 layers of patterned coating, depending on the complexity of the targeted material. The more patterned layers are incorporated, the more detailed the finish becomes.

Stonium Pattern PVDF Coatings

Multi-Layer PVDF Coating System

- Clear Coat

- Pattern Coat

- Pattern Coat

- Top Coat

- Primer Coat

Natural Patterned PVDF is a custom made coating system that replicates stone patterns. The replication process starts by choosing a targeted material for a building’s facade or decorative cladding. Our pattern engineers dissect and gather all the information from the targeted material; such as the patterns (mottling), colors and textures. Once this information is acquired, our engineers can completely customize the finished coating to your desired effects.

CHECK OUT OUR CUSTOM PATTERNS BELOW

Stone matching Stonium PVDF Coating

Customizing Stonium PVDF Coatings

Our stone PVDF coating can be customized by adding patterns, subtracting patterns, or altering the mottling size. The colors of the coating can match the target material or can be changed to achieve an entirely different visual effect. Even the texture of the finish can also be customized to achieve a sand textured finish or a glossy finish.

Clear coating texture options

- Glossy Clear Coat

- Pattern Coat

- Pattern Coat

- Top Coat

- Primer Coat

- Sand Clear Coat

- Pattern Coat

- Pattern Coat

- Top Coat

- Primer Coat

Stonium PVDF Panels with Stone Panels

The coating application process is half automated and half manual to achieve a non-repetitive pattern from panel to panel. Like a piece of art, each panel is coated to have it’s own unique pattern to achieve a natural appearance and contrast, but panels can also be designated with a specific coating pattern to achieve a required aesthetic.
