Cartier Ginza Wood Timbrium PVDF Coating

TIMBRIUM PVDF COATING

Natural Pattern PVDF Coating System

Timbrium PVDF coating is a high end coating system that can replicate natural wood 90% in likeness. Timbrium PVDF panels are much more stable than real wood products, especially in exterior settings. Our wood patterned coatings use 100% PVDF paint to achieve the appearance of wood, providing a longer lasting appearance with no colour fading or aging, especially in marine areas. Our coating can replicate all types of woods; maple, oak, mahogany and many more wood finishes. This coating system carries a 20 year warranty and complies with AAMA 2605 standards.

Timbrium PVDF Coating System is a multi-layered coating. This coating uses a Duranar XL 3 Coat System; comprising of a primer coat, top coat and clear coat, as it's core system. Pattern Coating layers are applied one by one in a specific color order to achieve a desired aesthetic result, replicating a targeted timber finish.

The Pattern Layers can range from 1-10 layers of patterned coating, depending on the complexity of the targeted material. The more patterned layers are incorporated, the more detailed the finish becomes.

Timbrium Pattern PVDF Coatings

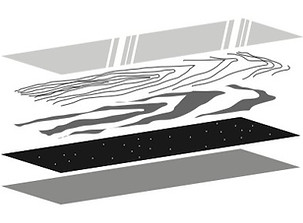

Multi-Layer PVDF Coating System

- Clear Coat

- Pattern Coat

- Pattern Coat

- Top Coat

- Primer Coat

Natural Patterned PVDF is a custom made coating system that replicates stone patterns. The replication process starts by choosing a targeted material for a building’s facade or decorative cladding. Our pattern engineers dissect and gather all the information from the targeted material; such as the patterns (mottling), colors and textures. Once this information is acquired, our engineers can completely customize the finished coating to your desired effects.

CHECK OUT OUR CUSTOM PATTERNS BELOW

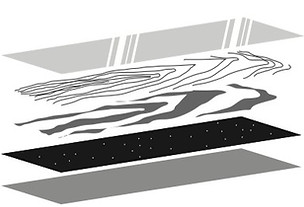

K11 Artus Wood PVDF Coating

- Glossy Clear Coat

- Pattern Coat

- Pattern Coat

- Top Coat

- Primer Coat

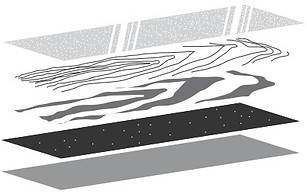

- Sand Clear Coat

- Pattern Coat

- Pattern Coat

- Top Coat

- Primer Coat

Customizing Timbrium PVDF Coatings

The patterns can be customized by adding patterns, subtracting patterns, or altering the mottling size. The colors of the coating can match the target material or can be changed to achieve an entirely different visual effect. Even the texture of the finish can also be customized to achieve a sand textured finish or a glossy finish.

Clear coating texture options

K11 Artus Timbrium PVDF Coating

The coating application process is half automated and half manual to achieve a non-repetitive pattern from panel to panel. Like a piece of art, each panel is coated to have it’s own unique pattern to achieve a natural appearance and contrast, but panels can also be designated with a specific coating pattern to achieve a required aesthetic.

For more information

download our NPP brochure:
